How Biochar Manufacturing Machine Achieves Carbon Neutrality

The carbon-neutral capabilities of the biochar manufacturing machine extend beyond its own operations. It can also be adapted to a variety of organic solid waste feedstocks. It converts solid waste that would otherwise produce methane emissions into biochar.

By processing organic solid waste, the biochar machine can replace traditional landfill/composting, reducing emissions of potent greenhouse gases like methane. Its synergistic carbon reduction benefits even exceed the carbon sequestration of the device itself.

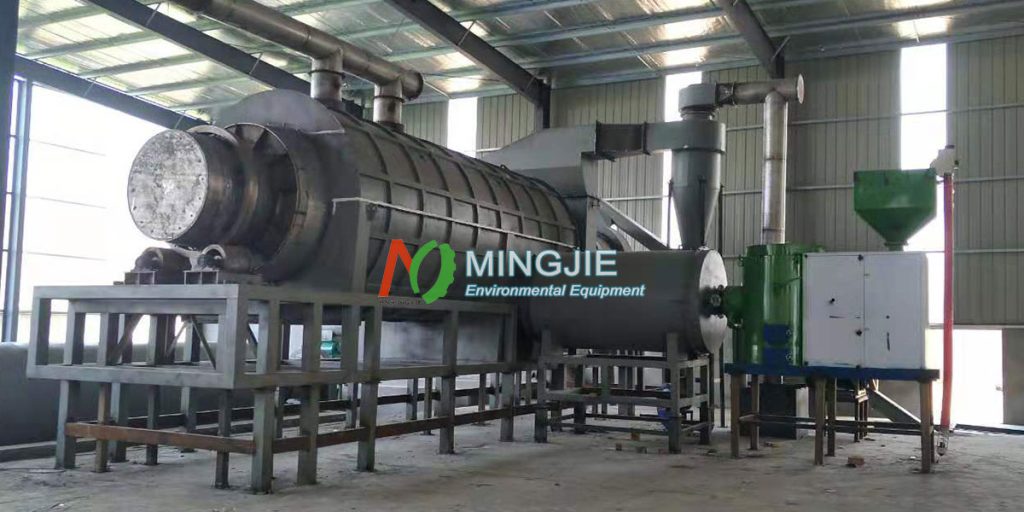

The biochar manufacturing machine efficiently converts carbon from biomass into stable biochar, which is the core of the equipment's carbon sequestration capability. It uses a sealed reactor to prevent carbon loss through oxidation, and cools and collects the biochar to prevent subsequent carbon release.

Biochar Manufacturing Machine Maximizes Biomass Conversion Efficiency

Traditional biomass processing processes (such as incinerators) are poorly sealed, resulting in over 80% of carbon being emitted as carbon dioxide. The biochar making machine sealed pyrolysis reactor effectively retains carbon.

Oxygen-free environment control: The carbonization furnace utilizes a double-layer, high-temperature-resistant, sealed structure (inner ceramic fiber + outer stainless steel) and is equipped with an oxygen monitoring sensor. This effectively prevents the biochar from reacting with oxygen to produce carbon dioxide. Experimental data shows that this design can increase the carbon solid-state conversion rate to 30%-50%.

Gradient heating and residence time control: The carbonization furnace is equipped with a heating system in different zones, and the residence time of biomass in each zone can be precisely controlled. This design ensures that the biomass is fully carbonized, thereby improving the carbon stability of the biochar.

Pressure balance system: The furnace is equipped with a pressure regulating valve to maintain a slight negative internal pressure. This prevents air from leaking into the furnace while also promptly discharging the bio-oil and syngas produced by pyrolysis. This ensures no additional carbon loss.

Biochar Cooling and Collection

Biochar after pyrolysis reaches temperatures as high as 500-600°C. If cooled directly in air, it is susceptible to secondary oxidation. This will result in 10%-15% of the carbon being converted back into CO₂. The biochar maker's cooling system addresses this issue.

Energy Self-Sufficient Closed-Loop Design

The operation of biochar manufacturing machine requires heating energy. The biomass carbonization plant achieves energy self-sufficiency through a "by-product energy recovery + heat recycling" design.

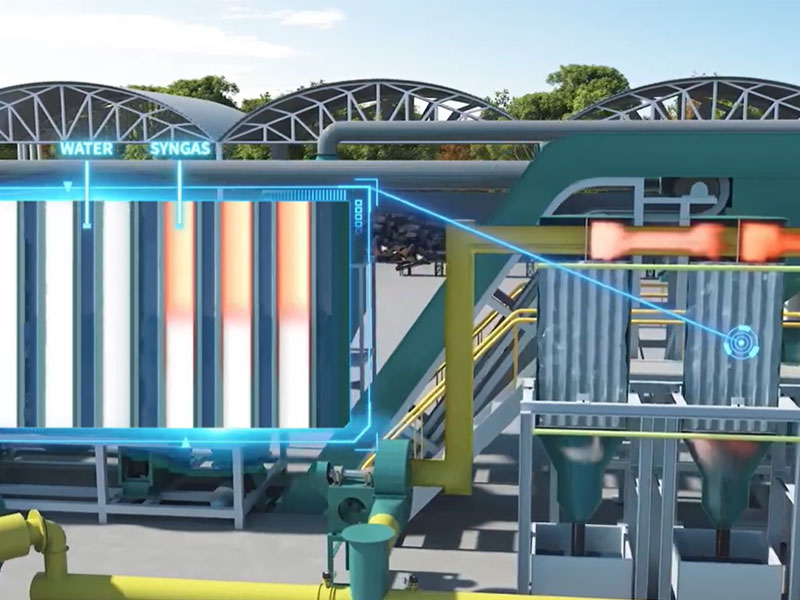

During the biomass pyrolysis process, biomass produces not only biochar but also bio-oil and syngas. The biochar manufacturing machine energy recovery system converts these by-products into heating energy. The syngas passes through purification system and is then introduced into the burner, directly providing heat for the pyrolysis furnace.

The high-temperature flue gas from the pyrolysis reactor would result in energy loss if discharged directly. The waste heat from the flue gas can be used to preheat the feedstock. A heat exchanger is installed in the feedstock feed channel to utilize the high-temperature flue gas to heat the biomass feedstock, reducing the preheating energy consumption of the pyrolysis furnace.

Exhaust Gas Purification Design

If the exhaust gas from the biochar production equipment is discharged directly, it may carry carbon-containing pollutants such as CO₂, VOCs (volatile organic compounds). An exhaust gas treatment system is required to achieve "carbon recovery and standard emission" to prevent secondary carbon release.
