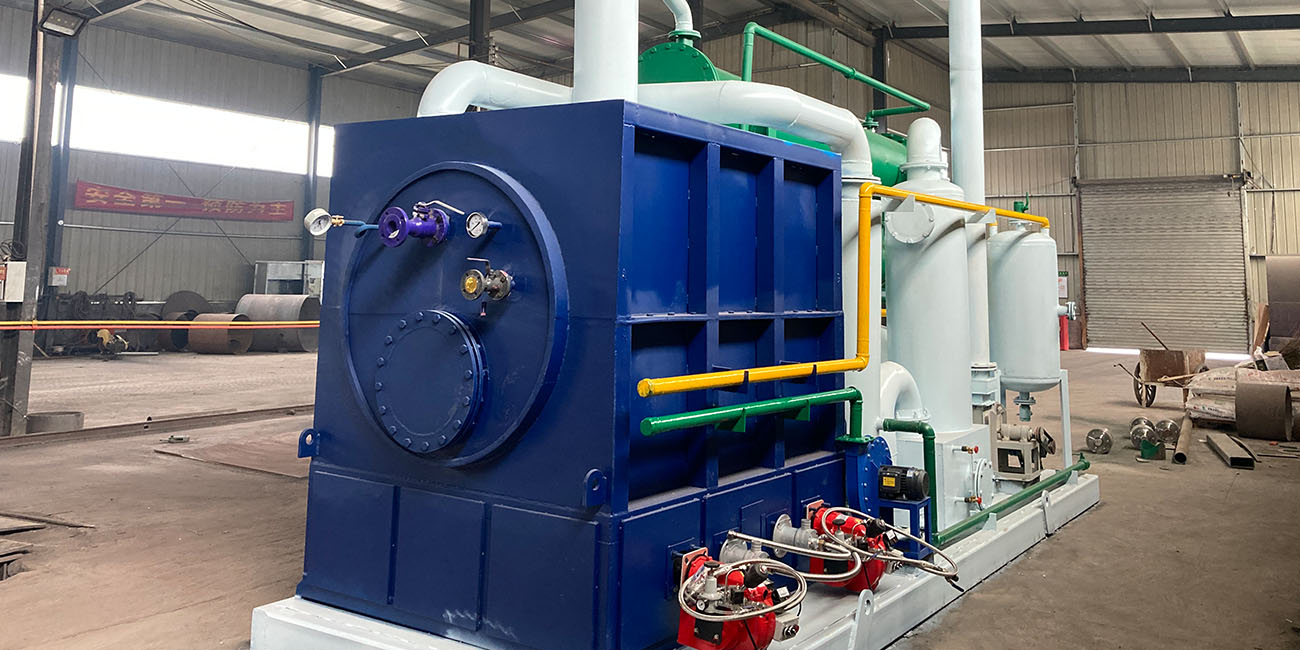

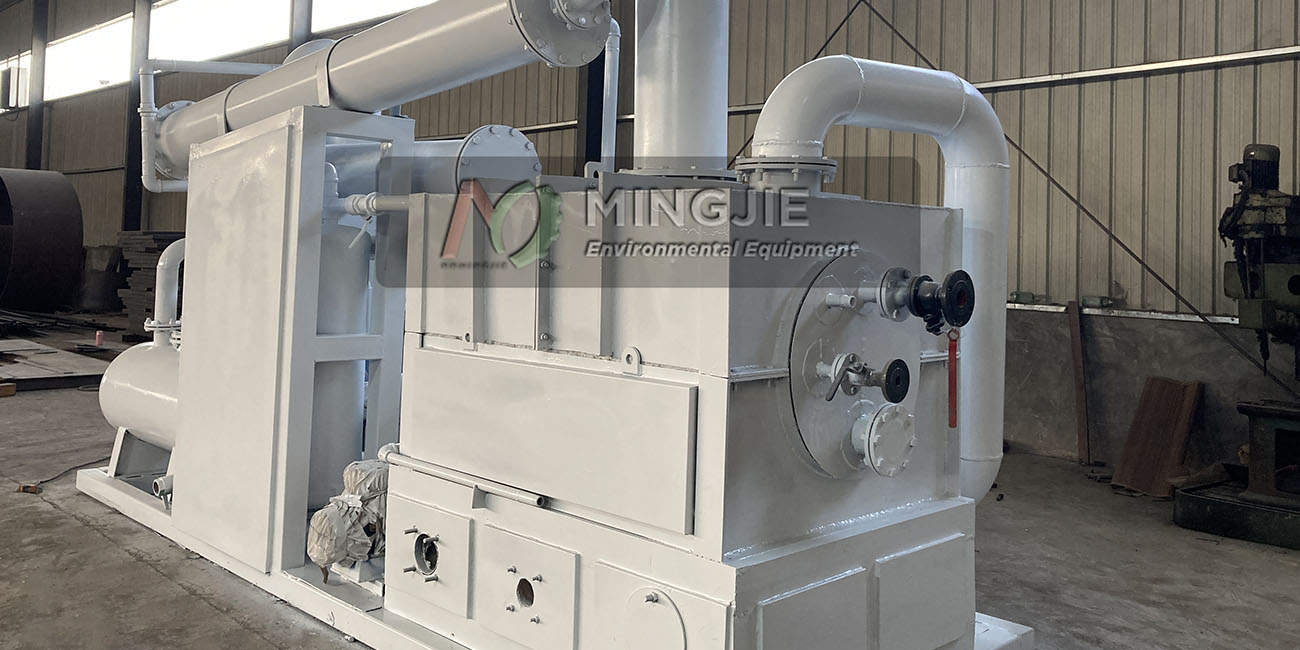

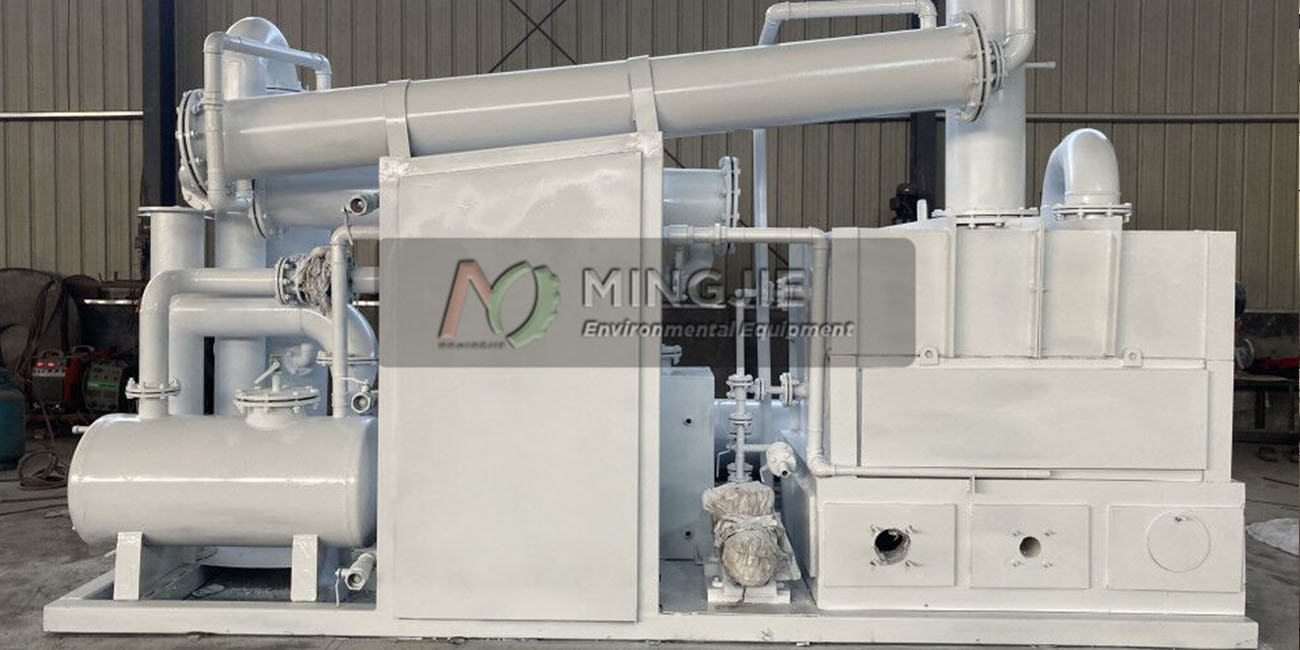

Skid-mounted Distillation Machine

Distillation system is for recycling the waste oil , pyrolysis oil into diesel fuel, with high temperature distillation and chemical treatment , higher grade oil will be generated from the process with higher value, check the 3D drawing of our system for your reference,

Request a quote

Technical Specifications

Model

MJZ-2

MJZ-3

MJZ-6

MJZ-10

MJZ-20

Capacity

1-2T/Batch

3T/D

6T/D

10T/D

20T/D

Power Consumption

10kw

15kw

22.5kw

42kw

46kw

Operation

Batch and skid-mounted

Batch

Batch

Batch

Batch

Raw material

Used engine oil, pyrolysis oil, used transformer oil, used lubricating oil

Final products

Non-standard diesel, diesel oil, base oil

Oil yield rate

80-85%

Working pressure

Negative

Construction

Vertical type

Cooling method

Water cooling

Fuel for heating

LPG, Diesel, Natural gas

Raw materials to be processed

Advantages of MJZ series distillation plant

  • Auto loading and auto slag oil discharging , high automation,
  • Chemical and physical treatment, make sure the final to be high quality and expand its application,
  • Negative operation pressure will make sure safety,
  • Specially designed inside oil recycling system, there will be no coking inside the reactor,
  • High oil yield,  low loss percentage in the process
  • Special emission purification system , to reach higher environmental standards

Application of Final Products

Used oil distillation to non-standard diesel

  1. Be used on low speed heavy-duty diesel engine, such as large agricultural machine, mining machine, ship, power generator, etc.;
  2. Be used on the automobile engine by mixing with standard diesel ;
  3. Be used as fuel for heating;

FAQ ( Frequently Asked Questions)

1.PyrolyQ1: How can we use the distilled diesel from waste tires or plastics?

A1: 1. Can be used for heating , 2. Can be used in the low speed and heavy duty engines, like boat, diesel generator.

Q2: What can we do with the heavy oil from distillation machine?

A2: 1. Can be sold as asphalt , if there is a market at your local, 2. Can be put back into the pyrolysis machine and refine it again.

Q3: Can we produce base oil from the distillation plant?

A3: Yes, we can produce base oil from the distillation plant, but the raw materials must be used engine oil, can not be pyro-oil.

Q4: Warranty. What are the over guarantees?

A4: All the plants from Mingjie has a 12 months guarantee since the act of acceptance is signed, during the warranty period, all the problems cause by quality will be resolved by Mingjie at its own cost, which will be indicated in the contract.
